AWP-20L
The AWP-20L is part of AUCTECH’s advanced AWP Series, offering a collaborative palletizing workstation designed for light industrial applications. Combining intelligence, safety, and effortless deployment, this robotic solution enhances productivity in industries such as food, pharmaceuticals, beverages, daily chemicals, electronics, and household goods.
With a payload capacity of 20-50kg and a working radius of 1.48-1.98m (±0.05mm accuracy), the AWP-20L ensures high-speed, precise palletizing at 8-12 cycles per minute. It supports vacuum grippers and mechanical claws, making it ideal for handling boxes, sheets, and bottles.
Engineered for plug-and-play operation, flexible scalability, and low maintenance costs, the AWP-20L is the perfect choice for businesses looking to automate batch production efficiently.
- Product Details
-
Download
Key Features
Easy Operation & Quick Deployment
- Plug-and-play setup for rapid commissioning.
- Intuitive interface with simple parameter input, reducing training time.
Flexible Palletizing Solutions
- Memory function allows quick switching between different palletizing schemes.
- Supports multiple stacking patterns with automatic alignment.
Compact & Space-Saving Design
- Small footprint enables flexible integration into existing production lines.
- Ideal for facilities with limited workspace.
High Efficiency & Precision
- Achieves 8-12 picks/min for fast palletizing.
- ±0.05mm repeatability ensures accurate stacking.
24/7 Automated Operation
- Reduces labor costs and minimizes manual intervention.
- Automatic height adjustment (up to 2.5m) adapts to varying pallet heights.
Wide Material Compatibility
- Handles boxes, bottles, sheets, and more with ease.
- Compatible with vacuum grippers & mechanical claws.
Enhanced Safety Features
- Built-in collision prevention for safe human-robot collaboration.
- Optional safety guardrails or light curtains for additional protection.
Industry-Leading Applications
- Perfect for food, pharmaceuticals, beverages, household paper, daily chemicals, electronics, and appliances.
Parameters
|
Model |
AWP-20L |
|
Weight |
Approx. 600 kg |
|
Payload |
20 kg |
|
Reach |
1880 mm |
|
Maximum Palletizing Cycle |
≤12 pcs/min |
|
Maximum Palletizing Height |
≤2550 mm |
|
Repeat Positioning Accuracy |
±0.05 mm |
|
Pallet Placement Form |
Manual, one left and one right |
|
Maximum Compatible Pallet |
1300 mm × 1200 mm |
|
Dimensions |
L1230 mm × W1730 mm × H2571 mm |
|
Dimensions of Wooden Box |
L2200 mm × W1450 mm × H1900 mm |
|
Maximum Power |
3.5 kW |
|
Reference Gas Consumption |
240–460 L/min |
|
Power Supply Requirements |
AC 220V ±10%, 50Hz ±5% |
|
Gas Supply Requirements |
0.5–0.7 MPa |
|
Communication Method |
EtherCAT interface, expansion IO |
|
Protection Level |
Robot Arm IP53 / Cabinet IP24 |
|
Ambient Temperature |
0–50°C |
|
Noise |
<80 dB |
|
Main Color |
Blue Gray |

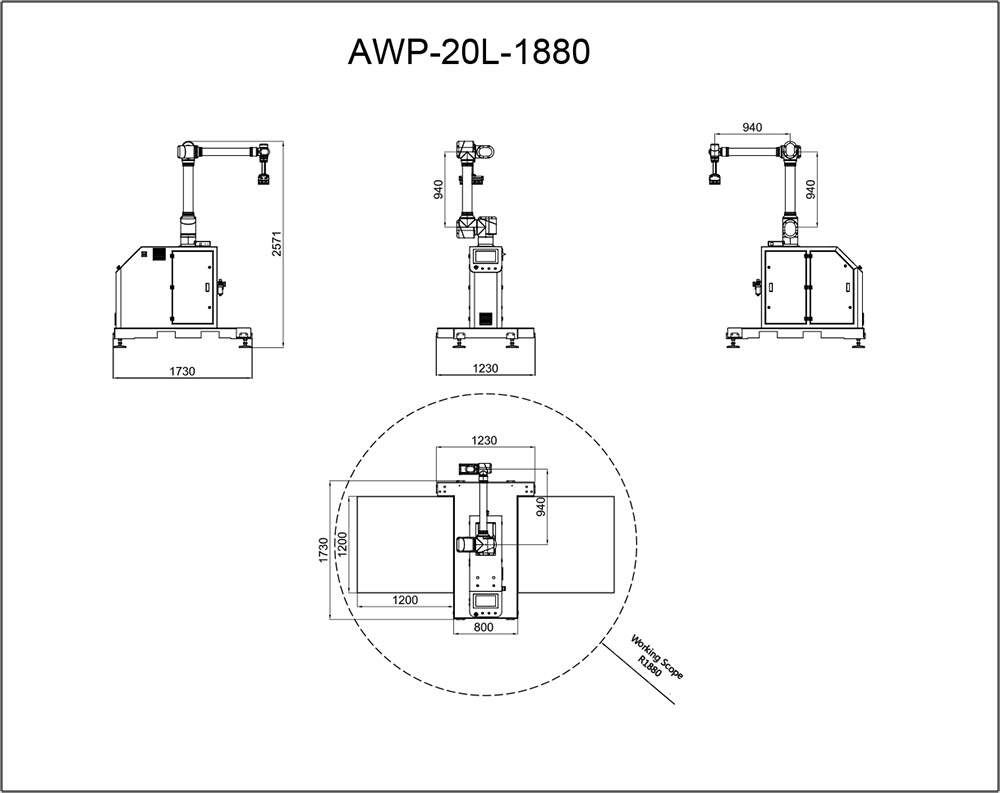

Dimension
Download
-
AWP Series Cobot Palletizing Workstation Catalog-V2.1.pdf
