H10-1500
The H10-1500, part of AUCTECH’s H Series collaborative welding robots, combines durability, precision, and safety in an IP67-rated body. Equipped with advanced servo systems, torque sensors, and collision detection for safe human-robot collaboration, it features drag-to-teach programming, laser seam tracking, and access to 100+ welding process libraries for superior weld quality.
Its modular design allows installation on mobile vehicles or magnetic bases, making it ideal for shipbuilding, steel structures, and confined spaces. With high rigidity and adaptability, the H10-1500 meets diverse industrial welding demands.
- Product Details
-
Download
Features
Stable and Reliable Performance
- Built with an IP67-rated body to withstand harsh environments such as dust, moisture, and welding splatter.
- High bearing capacity ensures consistent operation under demanding industrial conditions.
Exceptional Rigidity
- Equipped with a powerful servo and gearbox system, the H10-1500 maintains high stiffness during heavy-duty welding tasks.
- Enhances overall weld stability and precision even at maximum load.
User-Friendly Welding Firmware
- Designed with professional welding firmware, simplifying complex welding processes.
- Supports drag-to-teach programming for intuitive path calibration without requiring extensive programming knowledge.
Safe and Smooth Collaborative Operation
- Built-in torque sensors enable real-time collision detection and emergency stop functionality.
- Ensures maximum safety for human-robot collaboration, promoting a safer working environment.
Easy Teaching and Operation
- Equipped with a professional welding keypad that streamlines teaching and control.
- Reduces setup time, enabling faster deployment and higher productivity.
High-Precision Motion Control
- Integrates a strong motion control algorithm to deliver higher positioning accuracy and faster operational speeds.
- Ensures consistently high weld quality across different materials and welding methods.
Parameters
|
H10-1500 |
||
|
Payload |
10kg |
|
|
Robot arm length |
1455mm |
|
|
Robot weight |
55kg |
|
|
Size of vision-control integrated control cabinet for robot |
373mm*273mm*165mm |
|
|
Welding system |
AUCTECH Welding Process Software System |
|
|
Dragging mode |
Rapid dragging and accurate dragging |
|
|
Using mode |
Portable /Mobile |
|
|
Quick programming button |
Yes |
|
|
Welding source |
It is compatible with common arch-welding sources in the market such as Megmeet, Aotai, OTC, and Panasonic; it also supports laser welding |
|
|
Wire feeder |
Automatic welding wire feeder |
Automatic welding wire feeder |
|
Welding materials supported |
Carbon steel,stainless steel,and aluminum profile |
|
|
Plate thickness |
Medium-thin plate Thick plate |
|
|
Max output current of welding source❶ |
350A/500A |
|
|
Recommended mode |
Deep penetration |
|
|
Welding source communication interface |
Analog/EtherCAT |
|
|
Welding process library |
Weaving welding, fish-scale welding, and multi-layer and multi-pass welding are supported |
|
|
Welding parameter library |
Yes |
|
|
Cooling mode for welding gun |
Air cooling/Water cooling |
|
|
Mobile vehicle |
Optional |
|
|
❶Note: 350A type only supports air cooling,500A type with air cooling as standard,and water cooling is optional. |
||

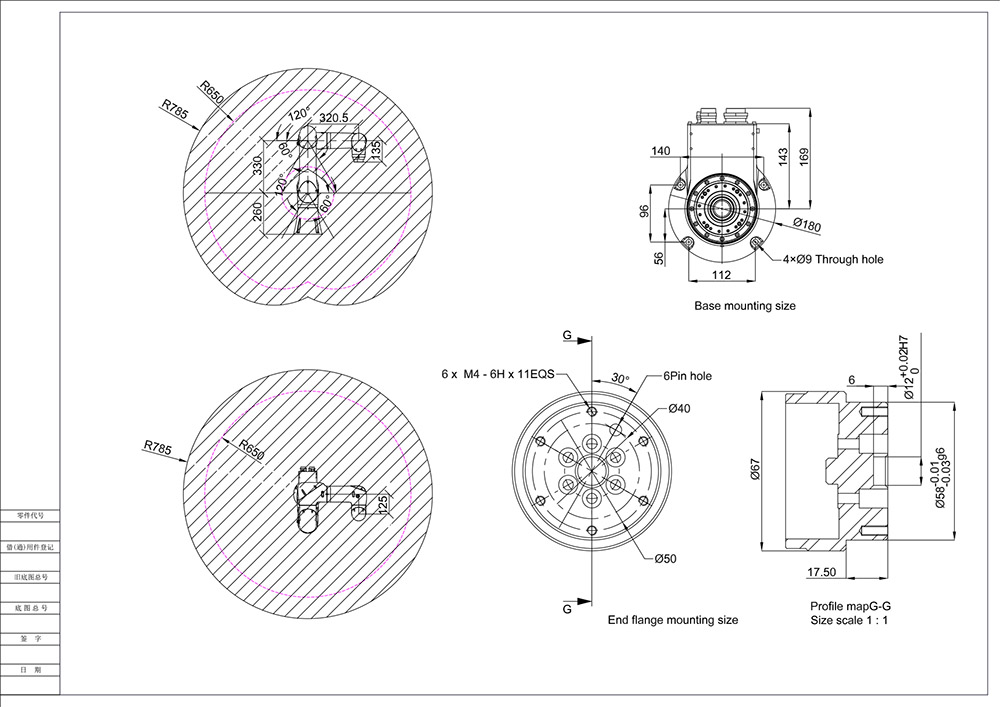

Dimension
Download
-
H Series Industrial Collaborative Welding Robot Catalog-V2.0.pdf
